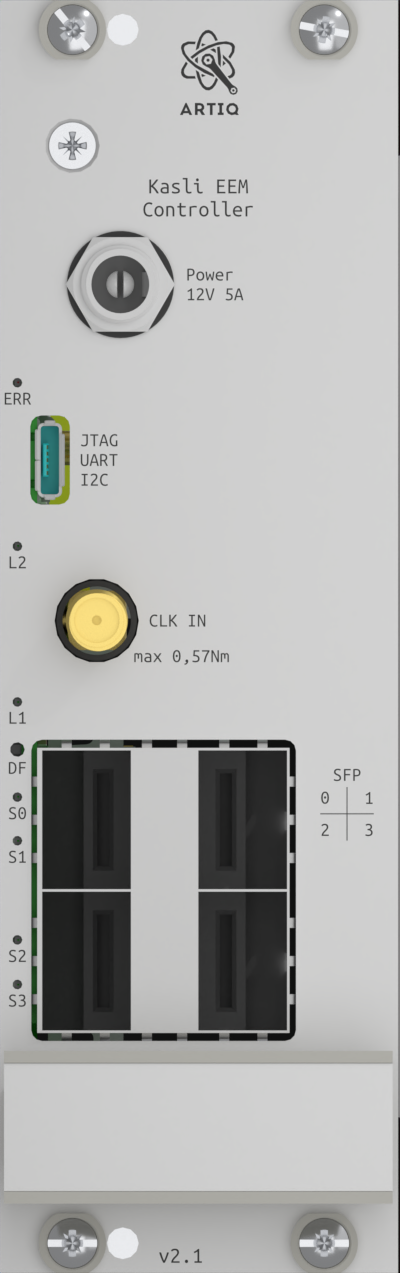

AMD Artix-7 controller. 12 EEM ports, 4 SFP (1 GbE + DRTIO). Runs as master, satellite or repeater.

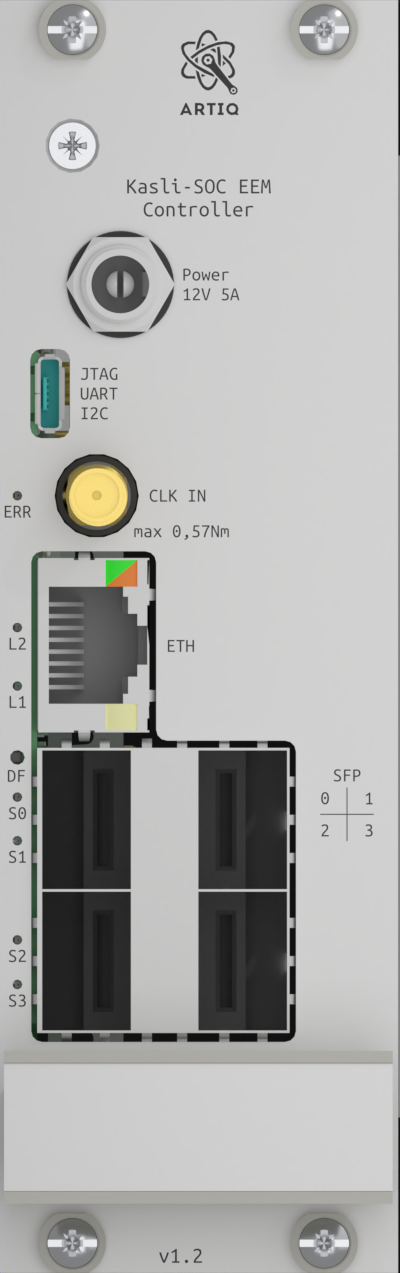

AMD Zynq-7000 System on Chip controller. 1 GHz ARM Cortex-A9 + FPU with FPGA. 12 EEM ports, 4 SFP. On-core compute and higher network throughput

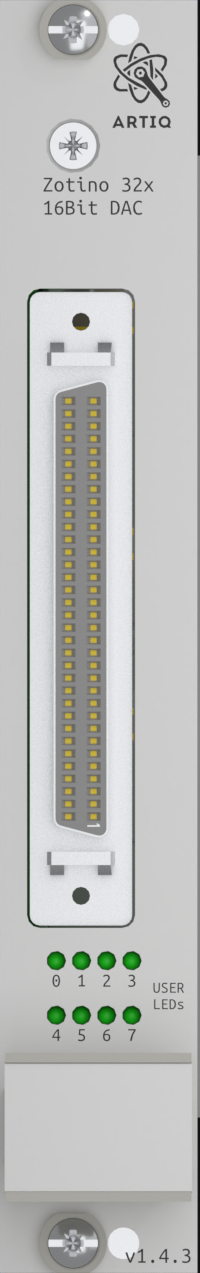

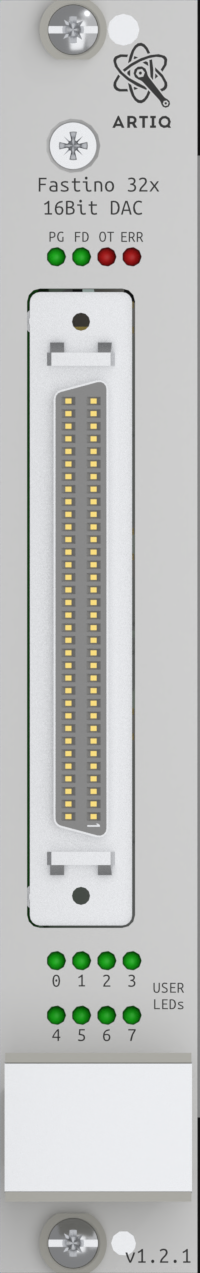

32-channel, 16-bit DAC, +/-10 V, 1 MSPS aggregate. Low-noise, high-stability. HD68 + IDC breakout.

32-channel, 16-bit DAC, +/-10 V, 2.5 MSPS simultaneously on all channels (with interpolation).

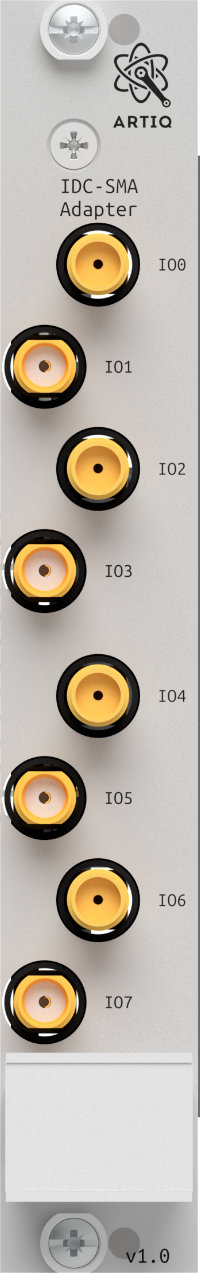

Breakout: 8 SMA in 4 HP, replaces an IDC26 header. For Zotino, Fastino, Banker, Stabilizer.

16-channel, 14-bit DAC to 125 MSPS, remote AFE (+/-10 V single-ended). PDQ-style synthesis (sigma-delta to ~16-bit)

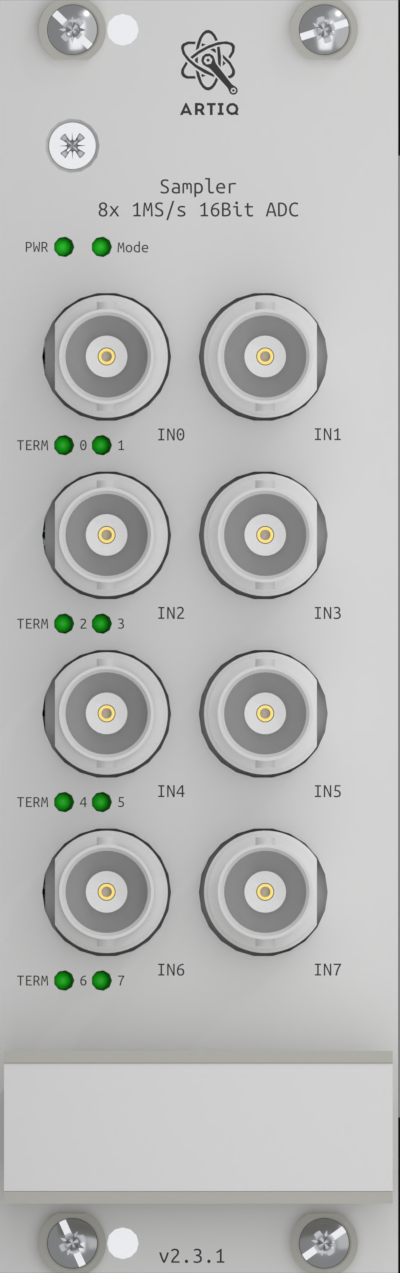

8 channels of 16-bit resolution. 1.5 MSPS simultaneously on all channels. Digitally programmable input gain. Full-scale input ranges between +/-10mV and +/-10V.

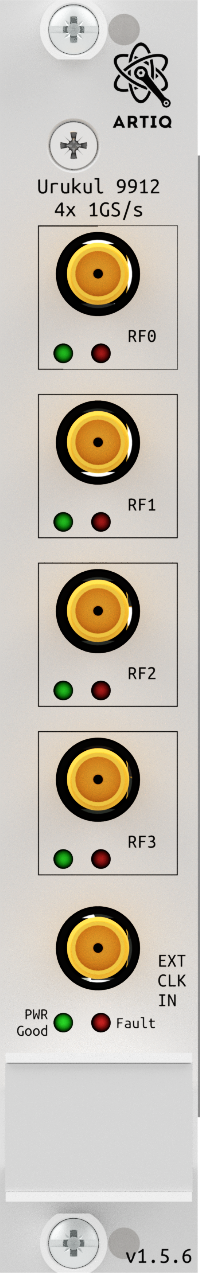

4 channel 1GS/s DDS. Output frequency (-3 dB): <1 to >400 MHz. Frequency resolution ~0.25 Hz (32 bit)

4-channel RF generator, 1.25 GSPS 16-bit (two IQ pairs), Artix-7 FPGA + DDR3. Up to 26 tones/channel (ARTIQ-9). 31.5 dB step attenuator, 2x 5 MSPS ADC.

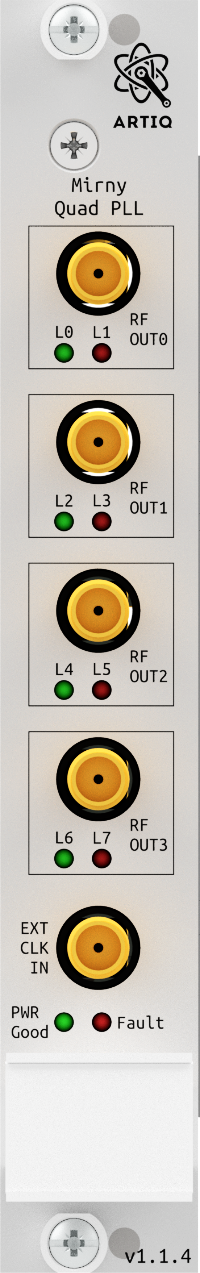

4-channel Wide-band PLL/VCO-based microwave frequency synthesiser. 53 MHz to >4 GHz, per-channel step attenuator. Lower jitter and phase noise.

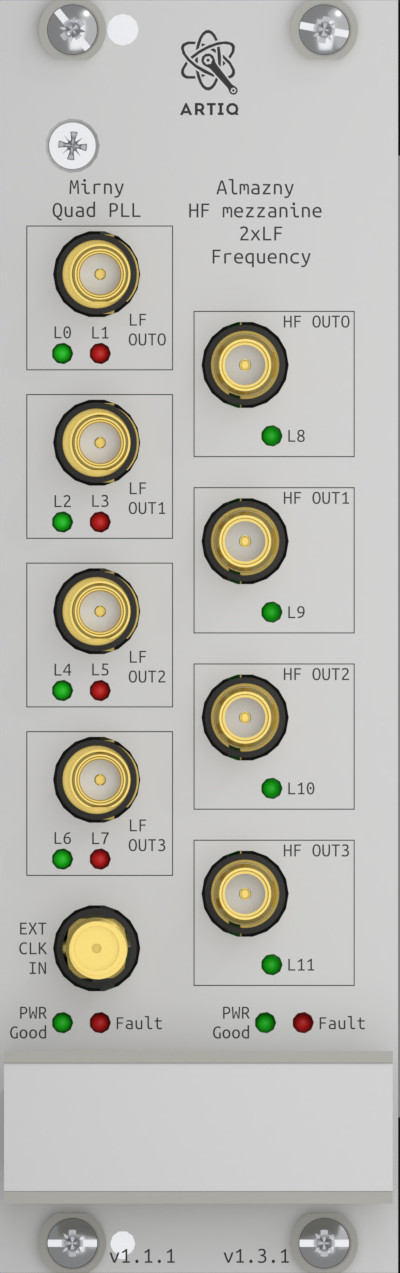

Mirny with high frequency mezzanine. Additional 4 channels up to 13 GHz.

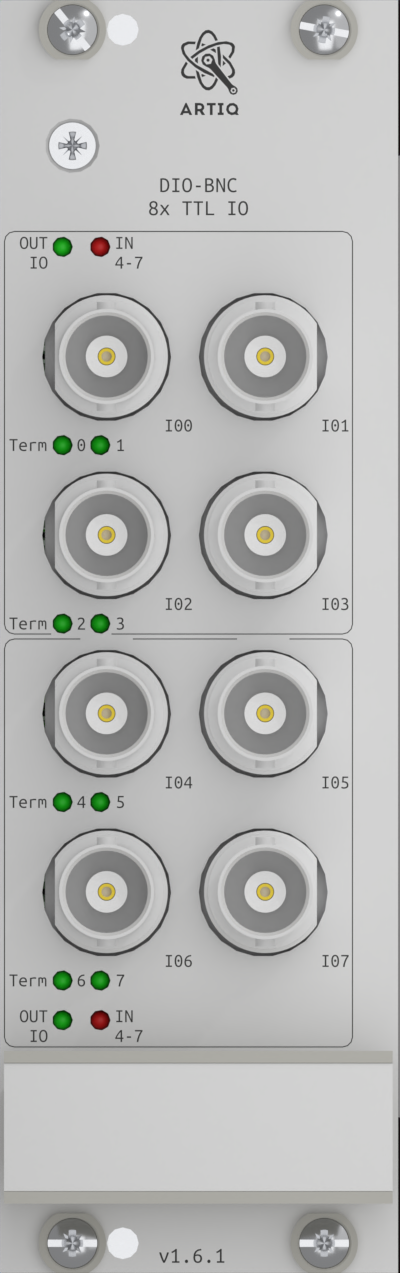

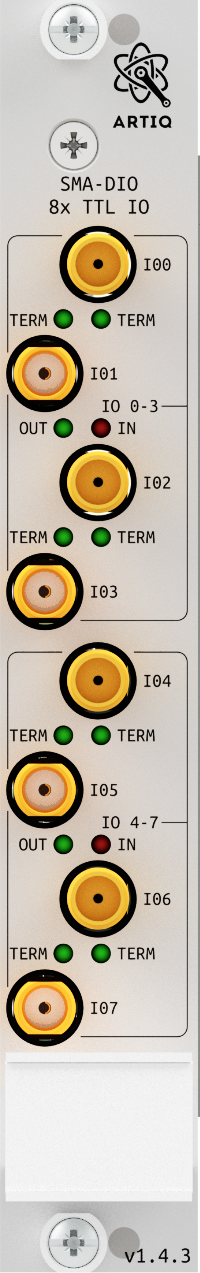

8 TTL digital I/O on SMA, two isolated banks of 4. Per-channel direction + 50 Ohm termination. 5 V open-circuit, TTL into 50 Ohm.

8 TTL digital I/O on BNC, two isolated banks of 4. Per-channel direction + 50 Ohm termination. 5 V open-circuit, TTL into 50 Ohm.

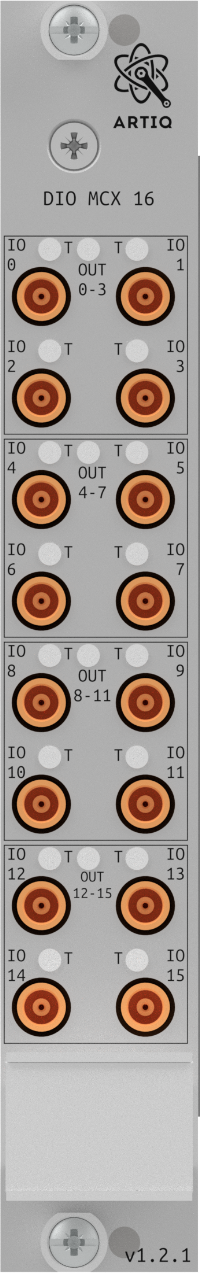

16 non-isolated bidirectional I/O on MCX, direction in groups of 4, per-channel 50 Ohm. Higher density/speed than BNC/SMA.

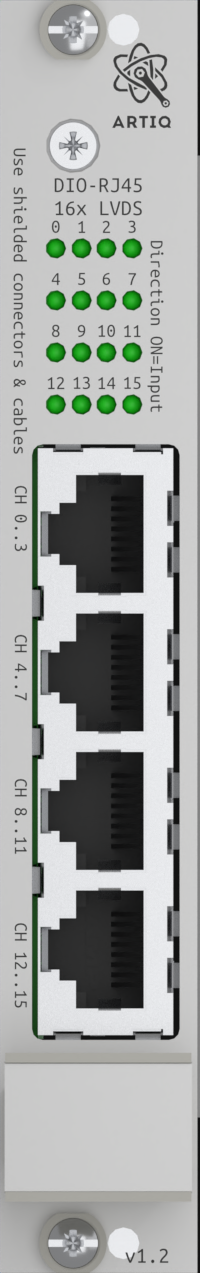

16 LVDS I/O pairs over 4 RJ45 (4/connector), per-signal direction. 100 Ohm drive/termination, shielded Cat 6 required.

Versatile digital I/O: up to 128 FPGA-managed GPIO on expansion/mezzanine connectors.

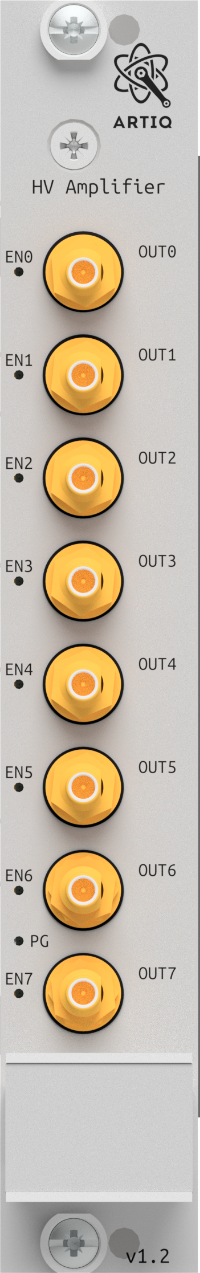

8-channel high voltage amplifier.

32-channel high voltage amplifier. x5 gain to +/-50 V, 12 MHz/gain BW, 21 V/us slew, over-temp protection.

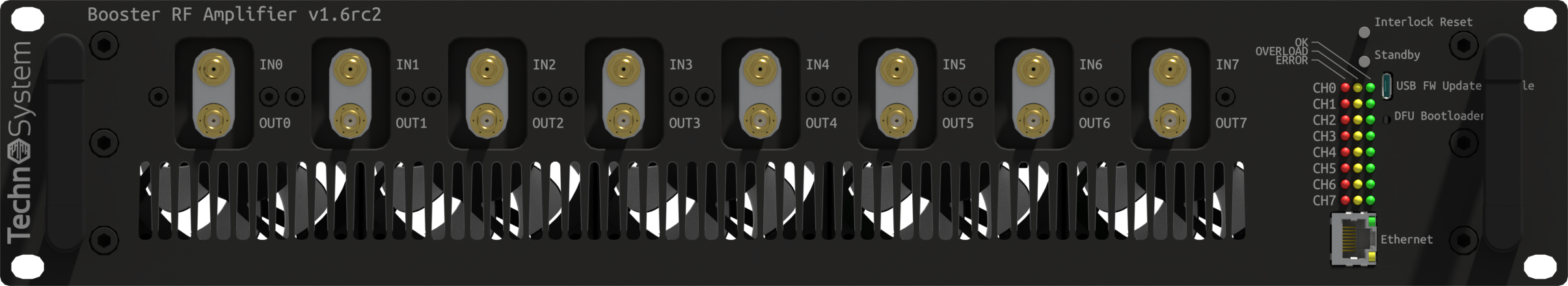

8-channel RF power amplifier providing several watts of RF between 40 MHz and 500 MHz in a 2U high 19-inch chassis.

2-channel CPU-based fast servo. 2x 16-bit ADC to 2 MSPS. 2x 16-bit DAC (1 us settling).

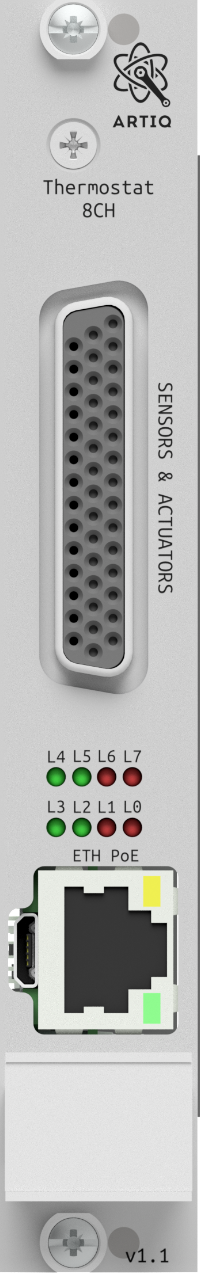

4-channel bipolar TEC controller for laser diodes, reference cavities and temperature-sensitive cards.

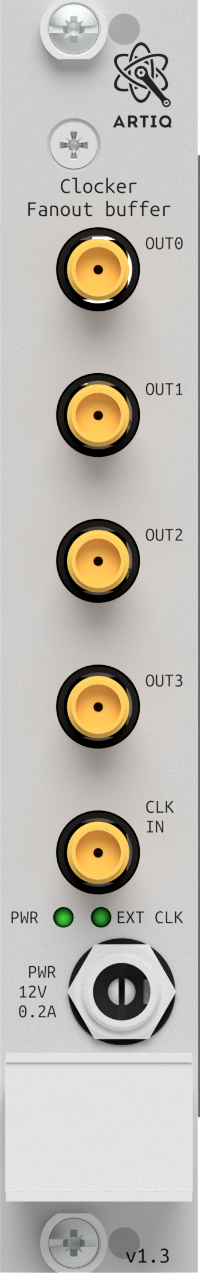

Low-jitter clock distribution for 3U boards: 2 inputs, 10 outputs (4x SMA), up to 1 GHz, <100 fs RMS jitter.

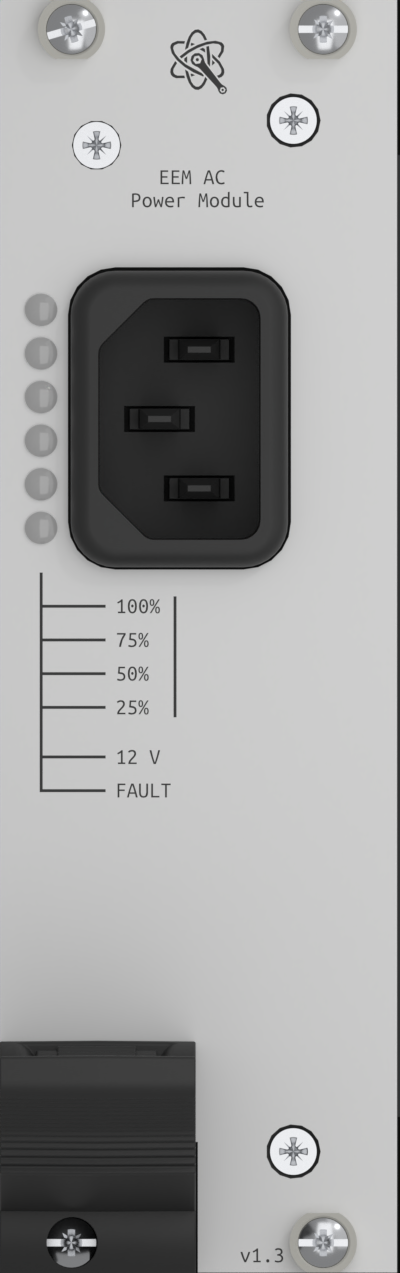

200W pluggable low cost power supply module for EEM.

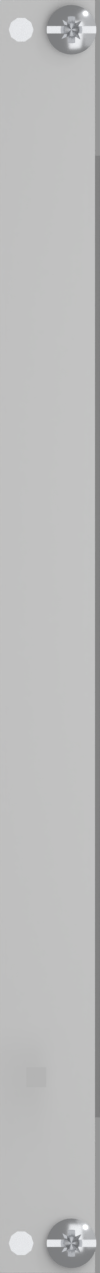

Filler 2hp for EEM crate

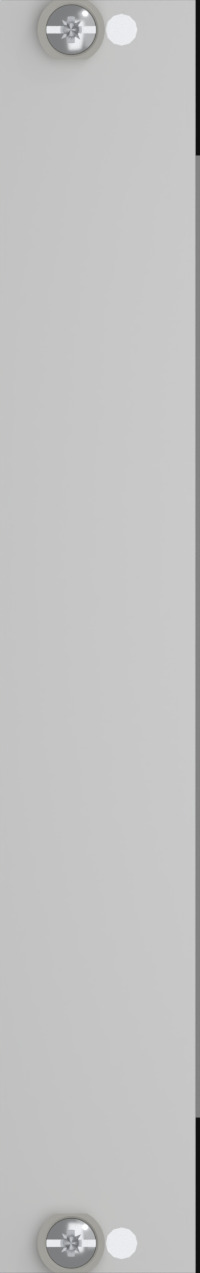

Filler 4hp for EEM crate

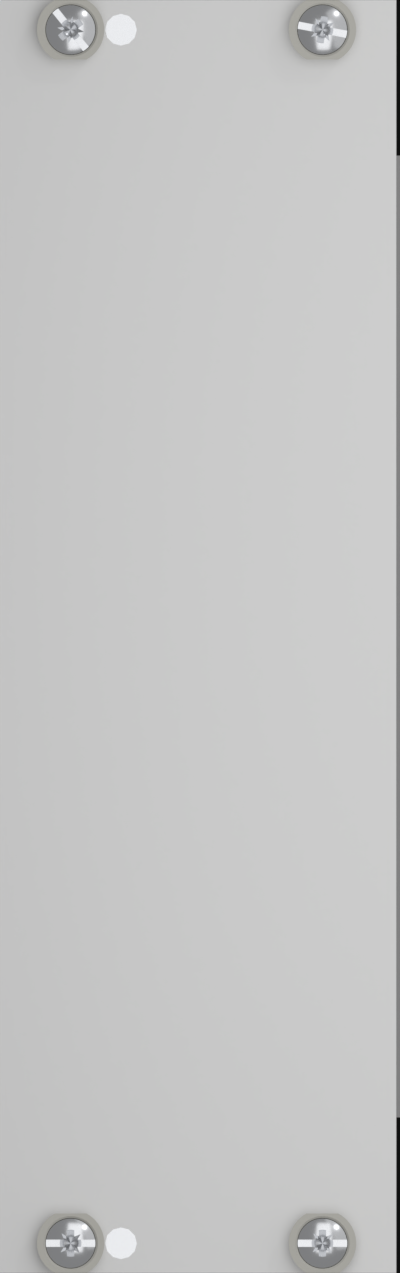

Filler 8hp for EEM crate

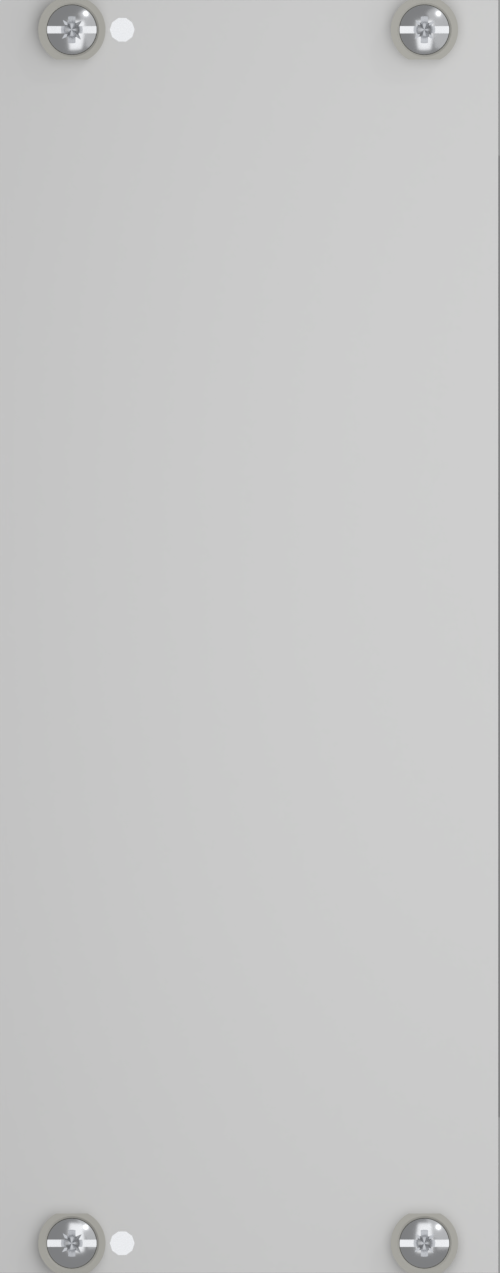

Filler 10hp for EEM crate

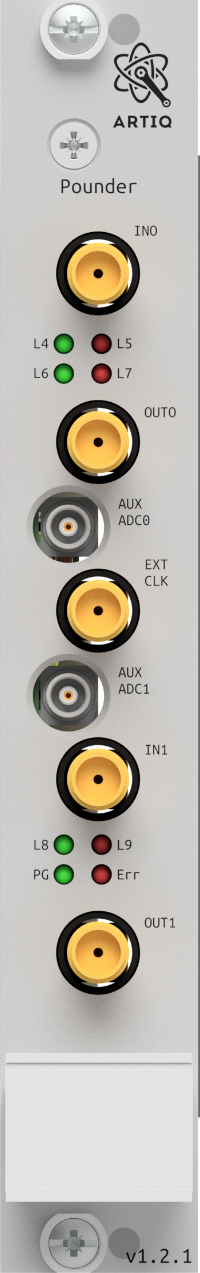

RF AFE mezzanine for Stabilizer: Pound-Drever-Hall laser locking via on-board DDS (mod/LO) and phase-detection mixers.

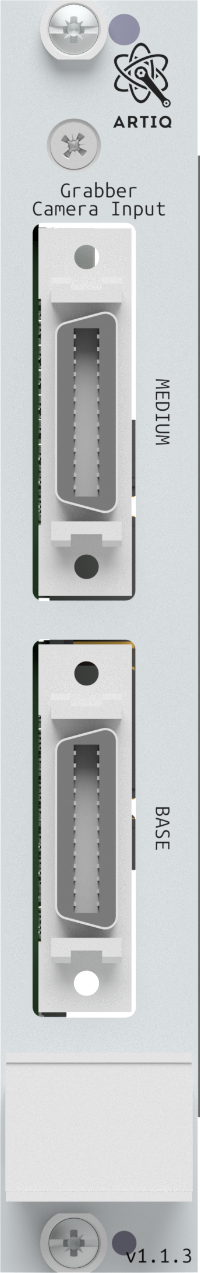

CameraLink frame grabber for scientific (EM)CCD cameras.

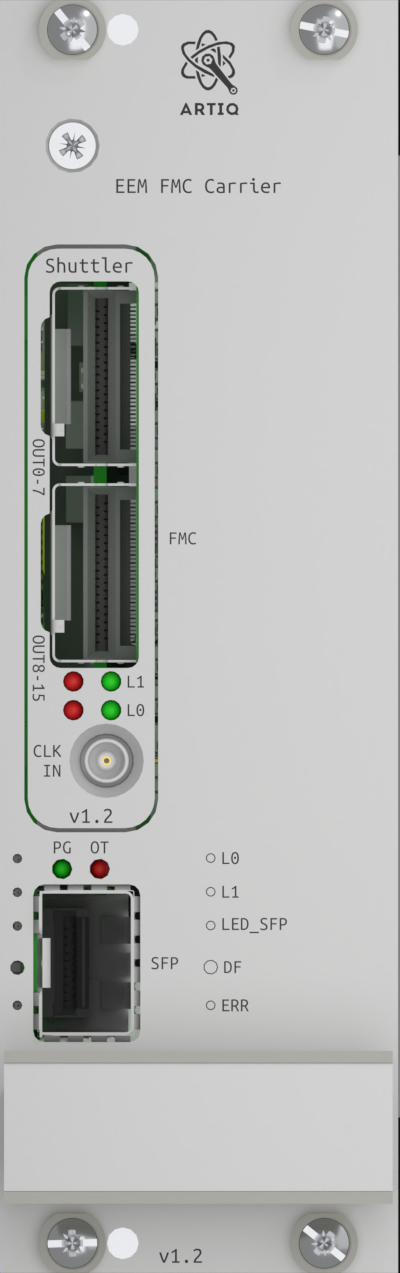

FMC-to-EEM carrier, 2 EEM ports. Hosts FMC mezzanines, e.g. Shuttler AFE.

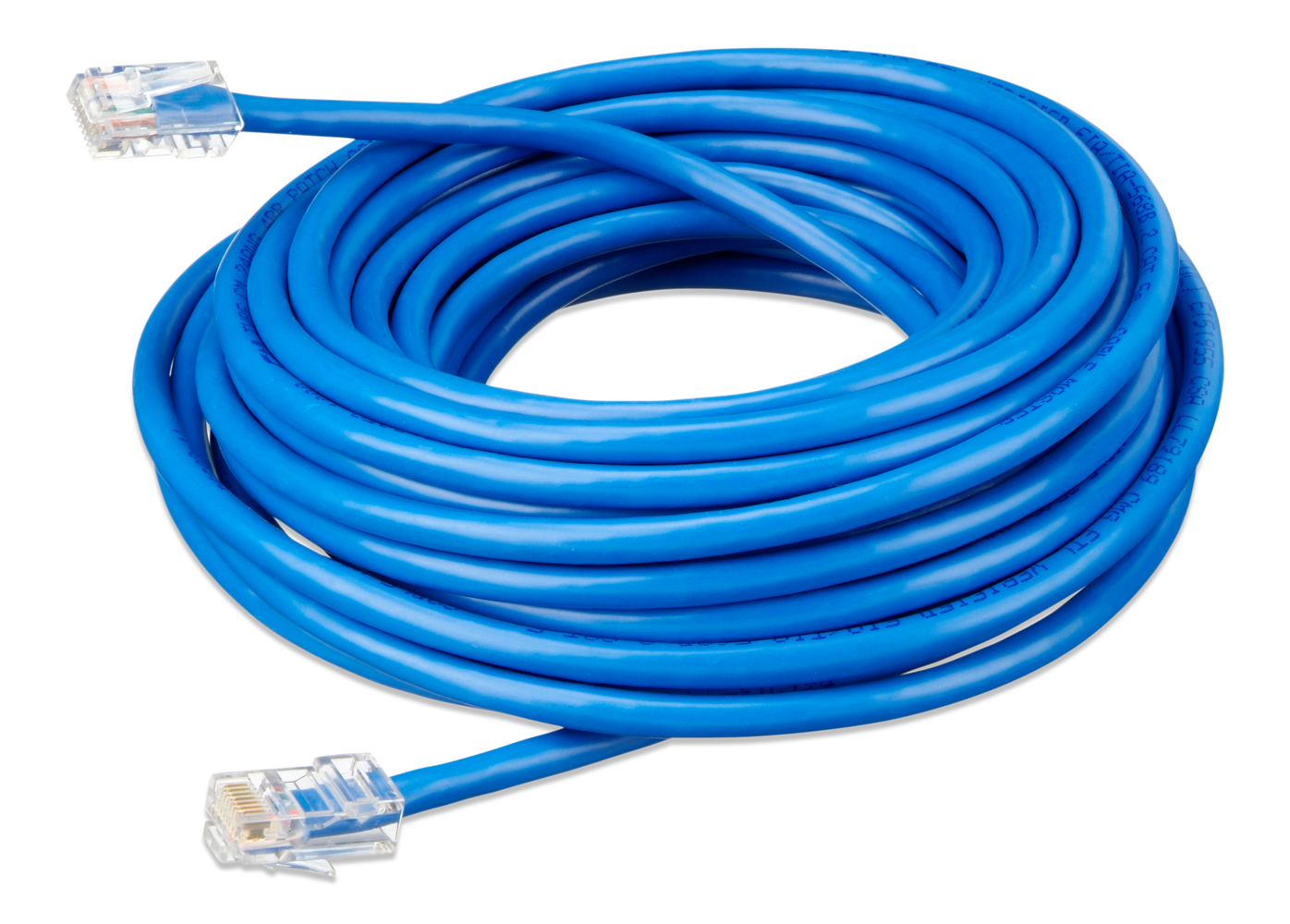

1 meter Cat 6a Ethernet Patch Cable

2 meter Cat 6a Ethernet Patch Cable

5 meter Cat 6a Ethernet Patch Cable

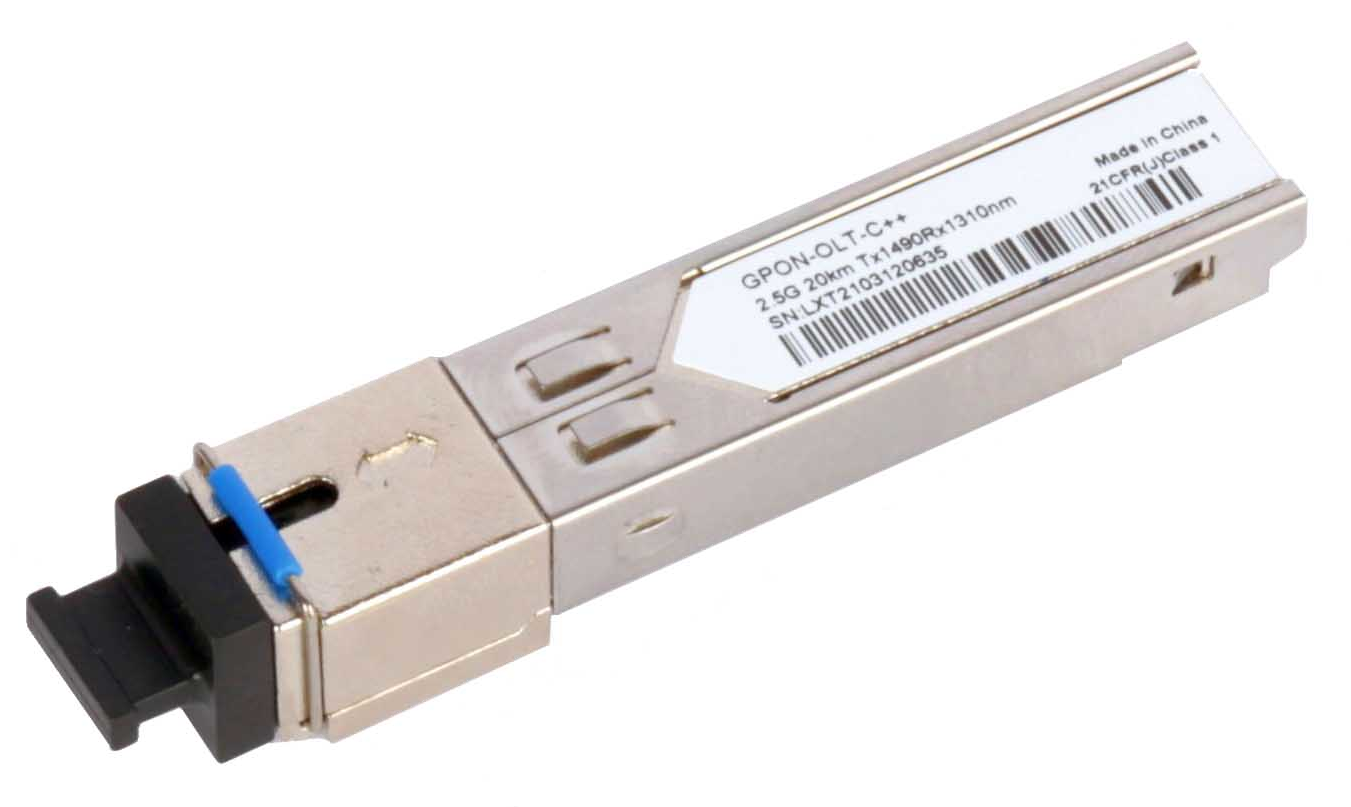

SFP insert

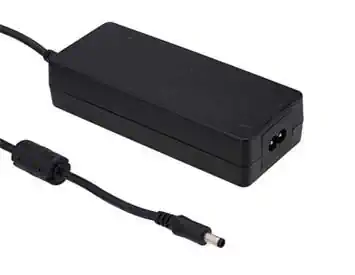

60W External power supply

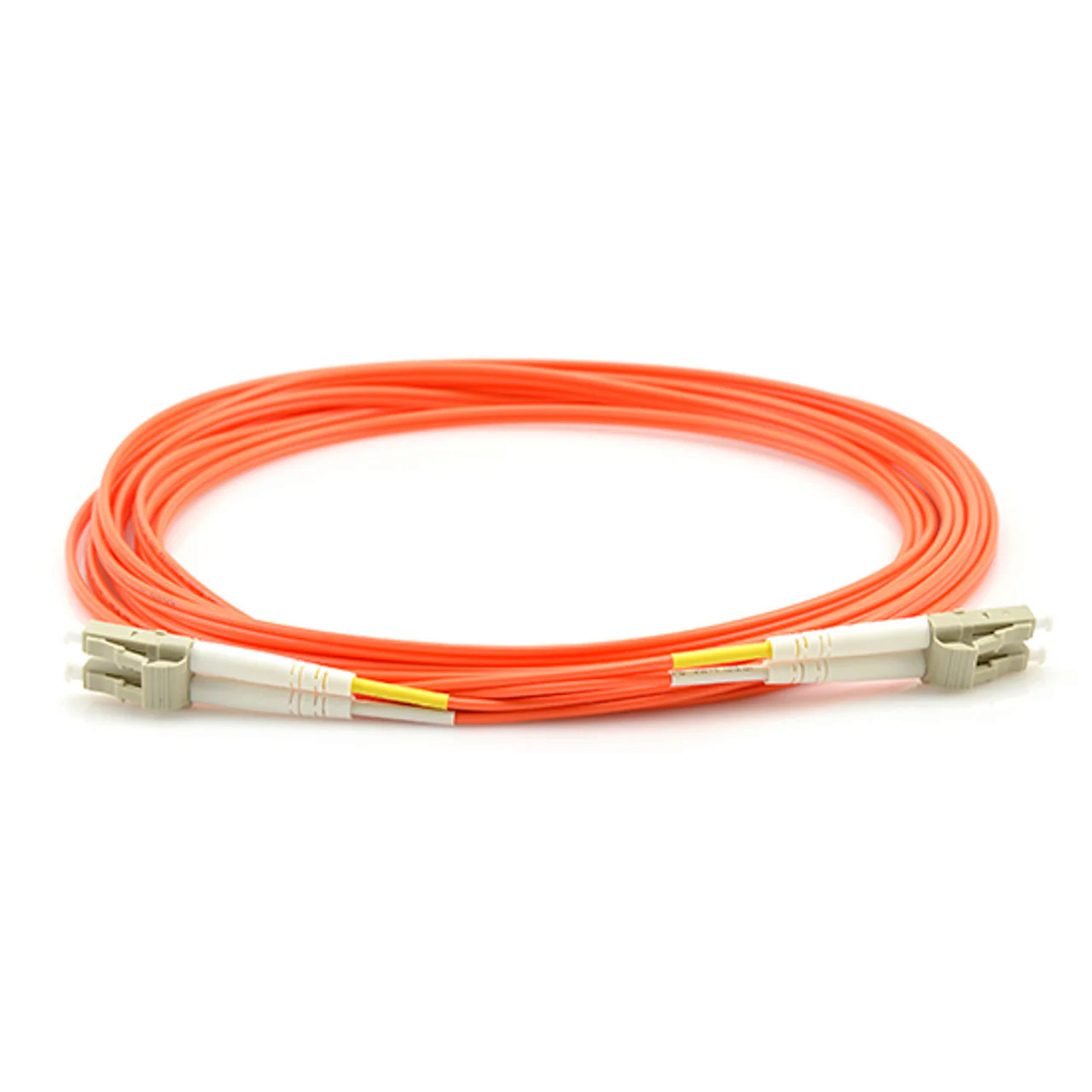

0.5 meter multimode optical fiber patchcord LC/UPC

1 meter multimode optical fiber patchcord LC/UPC

2 meter multimode optical fiber patchcord LC/UPC

5 meter multimode optical fiber patchcord LC/UPC

2.5 inch

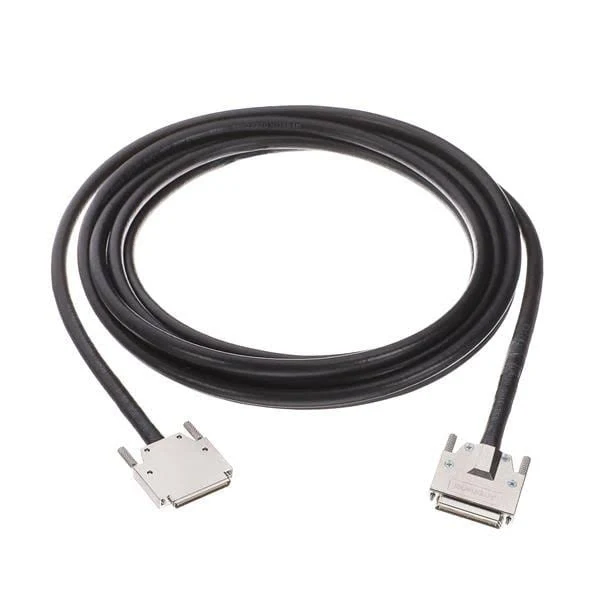

1 meter VHDCI Cable
